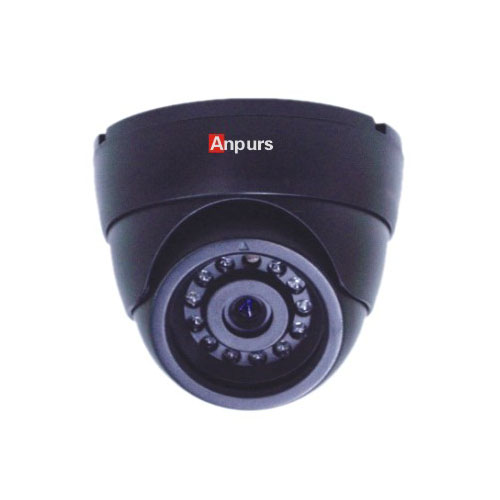

红外海螺摄像机:
『详细描述』
|
图象传感器\Image Sensor
|
1/4〞SHARP CCD
|
|
有效像素\Effective Pixels
|
PAL:512(H)×582(V) NTSC: 512(H)×492(V)
|
|
信号系统\Signal System
|
PAL/NTSC
|
|
水平清晰度\Horizontal Resolution
|
420TV lines
|
|
快门速度\Shutter Speed
|
1/50(1/60)—1/100,000sec
|
|
白平衡\White Balance
|
Auto white balance
|
|
信噪比\S/N Ratio
|
More than 48db(AGC OFF)
|
|
最低照度\Minimum Illumination
|
0Lux At Night(LED ON)
|
|
视频输出\Video Output
|
1.0Vp-p,75Ω
|
|
背光补偿\Backlight Compensation
|
ON
|
|
电源供给\Operation Temperature
|
AC12V/50HZ/2A
|
|
工作温度\Operation Temperature
|
-10℃~+50℃ RH95％Max
|
|
同步方式\Sync System
|
Internal Synchronization
|
|
尺寸\Dimensions
|
Φ130(W)×140(H)含支架×205(L)mm
|
|
净重/毛重\NW/GW
|
1630g/2100g
|
|
红外灯数量\LED number
|
Φ30 8PCS
|
|
红外灯距离\Infraed Lamps
|
150m
|
