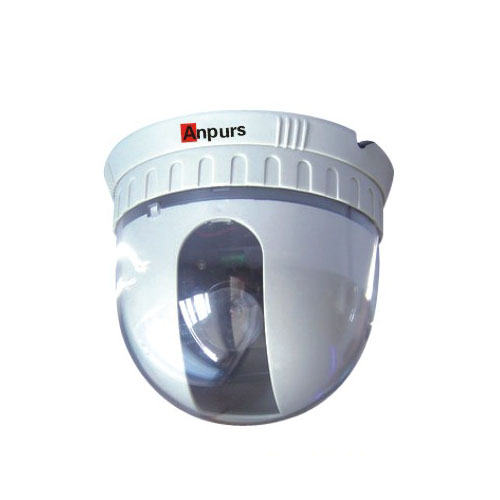

半球云台摄像机
『详细描述』
|
图象传感器\Image Sensor
|
1/4〞SHARP CCD 1/3 SONY CDD
|
|
有效像素\Effective Pixels
|
PAL:512(H)×582(V) NTSC: 512(H)×492(V)
|
|
感光面积\Sensing Area
|
3.6×2.7mm
|
|
信号系统\Signal System
|
CCIR/EIA
|
|
水平清晰度\Horizontal Resolution
|
420TV lines
|
|
快门速度\Shutter Speed
|
1/50(1/60)—1/100,000sec
|
|
白平衡\White Balance
|
Auto white balance
|
|
信噪比\S/N Ratio
|
More than 48db
|
|
最低照度\Minimum Illumination
|
1.0Lux/F1.2
|
|
视频输出\Video Output
|
1.0Vp-p,75Ω
|
|
电源供给\Power Requirement
|
DC 12V 120mA
|
|
工作温度\Operation Temperature
|
-10℃~+50℃ RH95％Max
|
|
云台控制信号及功耗\Control
|
24VAC±10﹪ 50HZ＜5W
|
|
旋转角度\Revolve the angle
|
上下:90° 左右:355°
|
|
尺寸\Dimensions
|
￠120×150mm
|
|
净重/毛重\NW/GW
|
450g/560g
|
