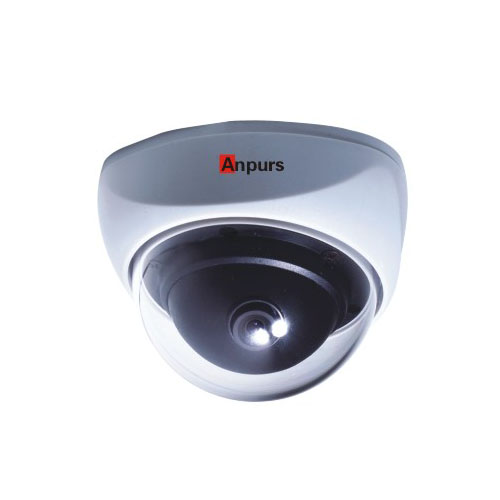

半球摄像机
『详细描述』
|
图象传感器\Image Sensor
|
1/3〞SONY CCD
|
|
有效像素\Effective Pixels
|
PAL:512(H)×582(V) NTSC: 512(H)×494(V)
|
|
信号系统\Signal System
|
PAL/NTSC
|
|
水平清晰度\Horizontal Resolution
|
420TV lines
|
|
快门速度\Shutter Speed
|
1/50(1/60)—1/100,000sec
|
|
白平衡\White Balance
|
Auto white balance
|
|
信噪比\S/N Ratio
|
More than 48db(AGC OFF)
|
|
最低照度\Minimum Illumination
|
1.0Lux /F1.2
|
|
视频输出\Video Output
|
1.0Vp-p,75Ω
|
|
电源供给\Power Requirement
|
DC12V
|
|
功能消耗\Power Consumption
|
120mA
|
|
工作温度\Operation Temperature
|
-10℃~+50℃ RH95％Max
|
|
尺寸\Dimensions
|
Φ75×70mm
|
|
净重/毛重\NW/GW
|
150g/220g
|
